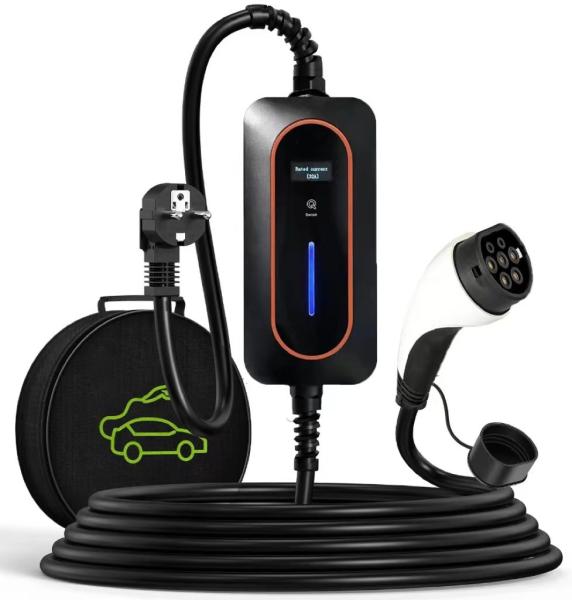

3.3KW 16A Portable EV Charger Type 2 IEC 62196 Type 1 SAE J1772 GBT EV Charger

Place of Origin : Sichuan, China

Model Number : Evo32P

Brand Name : Evoyage

Packaging Details : 10 x 44 x 32 cm; 3Kilograms

Supply Ability : 10000 Piece/Pieces per Week

MOQ : 1 pieces

Price : Negotiable

Payment Terms : T/T, L/C, Western Union, Paypal, Alipay, Cash

Delivery Time : 7-15 Working days

Product Name : 5Meters Portable EV Charger Type2/IEC 62196/Type1/SAE J1772/GBT 3.3KW 16A , Home EV Charging Cable with Schuko

Output Power : 3.3KW

Application : Electric Vehicle Car Charging

Rated current : 8A to 16A adjustable

Rated voltage : 110V to 240V 1 phase

Standard : Type2/IEC 62196/Type1/SAE J1772/GBT 20234

Mechanical life : 10000 Times' Plug In/off

Cable Length : 5 Meters/ Customized

Operating Temperature : -30℃ +50℃

Warranty : 1 Year

Contact Now

5Meters Portable EV Charger Type2/IEC 62196/Type1/SAE J1772/GBT 3.3KW 16A , Home EV Charging Cable with Schuko

3.3KW 16A Portable EV Charger Type 2 IEC 62196 Type 1 SAE J1772 GBT EV Charger

3.3KW 16A Portable EV Charger Type 2 IEC 62196 Type 1 SAE J1772 GBT EV Charger

Hassle-free Charging for your EV

Electric Vehicles (EVs) are the future. We applaud you for being ahead of the pack by making a wise, pioneering investment. The Evoyage EV Charger can make EV use way easier by supplementing your factory-issued charger. It produces a rapid-fire charge and has LED indicator lights that notify you of any charging errors.

✔ Standard IEC62196-2/GBT 20234/SAE J1772 cable fit to most EVs

✔ Level 2 charging capable

✔ LED indicator lights to manage charging errors

✔ 25ft cable fit to most driveways

✔ Damage-resistant

Less Time Charging

Our portable electric car charger charges your vehicle 4x faster than a standard 8A level 1 car charger. Power Plug: Schuko Power: 3.3 kW Max.

Fully Security Protections

A level 1+2 electric car charger can charge with peace of mind with a built-in intelligent chip. Such as lightning / leakage / grounding protection, etc.

Easy to Use

The LED indicators allow you to take a quick glance to view the charging status. The control box is made of PC plastic material, fireproof grade rubber shell(UL94V-0).

Details of this EV Charger

Schuko Plug Type2 EV Charger 8-16Amp 5M - LCD Schuko Plug Type2 EV Charger 16Amp 5M - LED Schuko Plug Type1 EV Charger 8-16Amp 5M - LCD Schuko Plug Type1 EV Charger 16Amp 5M - LED Schuko Plug GBT EV Charger 16Amp 5M - LED
Max. Output Power 3.3kW 3.3kW 3.3kW 3.3kW 3.3KW
Charger Type Portable Charger with Digital LCD Screen Portable Charger with Digital LED Screen Portable Charger with Digital LCD Screen Portable Charger with Digital LED Screen Portable Charger with Digital LED Screen
Length 5 Metres 5 Metres 5 Metres 5 Metres 5 Metres
Rated Voltage 110V to 240V 1 phase 240V 1 Phase 110V to 240V 1 phase 240V 1 Phase 240V 1 Phase
IP Rating IP65 IP65 IP65 IP65 IP65
Charging Socket Schuko to Type 2 Schuko to Type 2 Schuko to Type 1 Schuko to Type 1 Schuko to GBT
Charging Options 8A to 16A adjustable Fixed 16A 8A to 16A adjustable Fixed 16A Fixed 16A

3.3KW 16A Portable EV Charger Type 2 IEC 62196 Type 1 SAE J1772 GBT EV Charger

Outstanding points for this EV charger
1. when choosing a charger, safety is your first consideration. This EV charger has already passed all the tests of TUV CE. which includes safety setting with lightning protection / overvoltage / overcurrent / overtemperature and leakage protection, adopts type A +DC6ma EU standards, so it is much safer than other ordinary EV chargers.
2. maximum charging speed is 3.3kW-h for daily use. Slow charging can extend the battery life, if you have engouh time, please choose the slow charger instead of supercharger. And it is a portable EV charger, you can carry it with you when traveling instead of spanding your time to find supercharger station.

3. current adjustable and memory function: 8A 10A 13A 16A adjustable, EV charger with momory function, can remember the current of last time. If you choose 8A, the next time will also be 8A.

4.New timer function: with 1 to 10 hours start charging later appointment function, you can start charging when the electricity price is lower. come home 20:00, but want to charge 23:00, so set charging 3 hours later. Very useful function!

Specification:
Input power: 110V to 240V 1 phase
Current: With LCD display Current: 8A to 16A adjustable；With LED display Current: Fixed 16A
Connection type: Type2/IEC 62196/Type1/SAE J1772/GBT 20234
Phases: 1
Total length: 5/10 meters
RCD: Type A AC RCD+DC RCD
Operating temperature: -30°C - +50°C
Storage temperature: -40°C - +80°C
Protection class: cable box: IP65, type 2 charging plug: IP55
Contact socket: copper alloy, silver + thermoplastic on the top side
Impact from external force: can be 1m drop and 2t

Withstand vehicle overpressure
Housing fire protection class:UL94V-0. Makes charging easy and safe!
